Connecting everything that flies

uAvioni 14 fuctions in 1 instrument

Radically innovating – making the skies safe and open for all.

From our inception, we’ve been on a path to enhance safety, accessibility and efficiency in the skies. Our technology, products and services are the foundation to delivering seamless communication and coordination among everything that flies

In the follow sections;

general aviation

uncrewed aircraft

Aviation Networks

defense

The Open Connected Cockpit

Achieve Your Best Flying Experience

In technology, the ecosystem idea where ‘it just works’ can be both a blessing and a curse, and in aviation it is more often a curse.

With long life-spans and the steady march of technology, few systems and instruments seamlessly work with those of a previous era, or even the current one.

By introducing the Open Connected Cockpit, we aim to change that by delivering simple, cost effective avionics that offer you a choice.

A choice of configuration, a choice of integration, and above all a choice to breathe new life into your existing systems or update them with new ones!

You can contact us for Pannel displays, ADS-B recievers and transcievers of your aircraft.

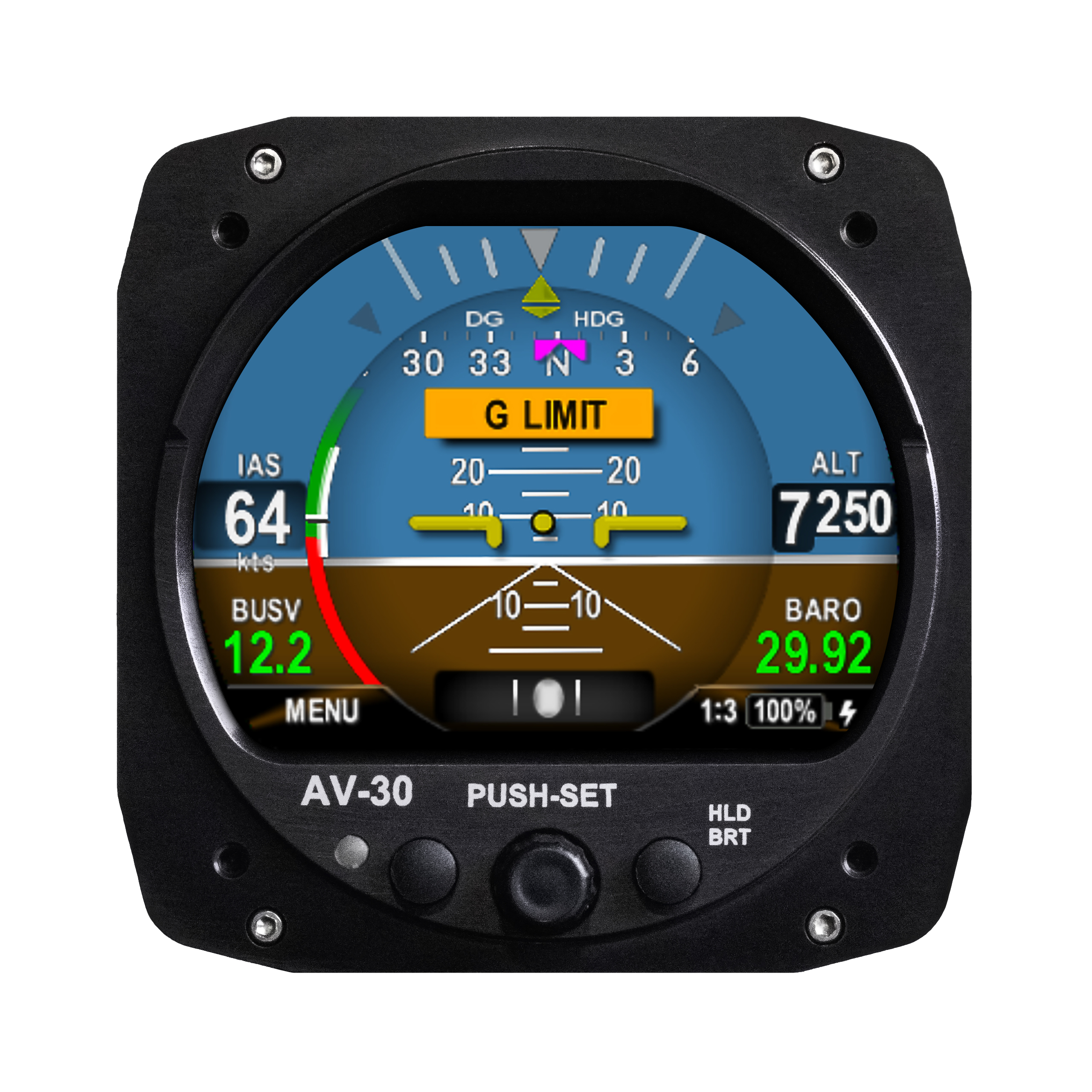

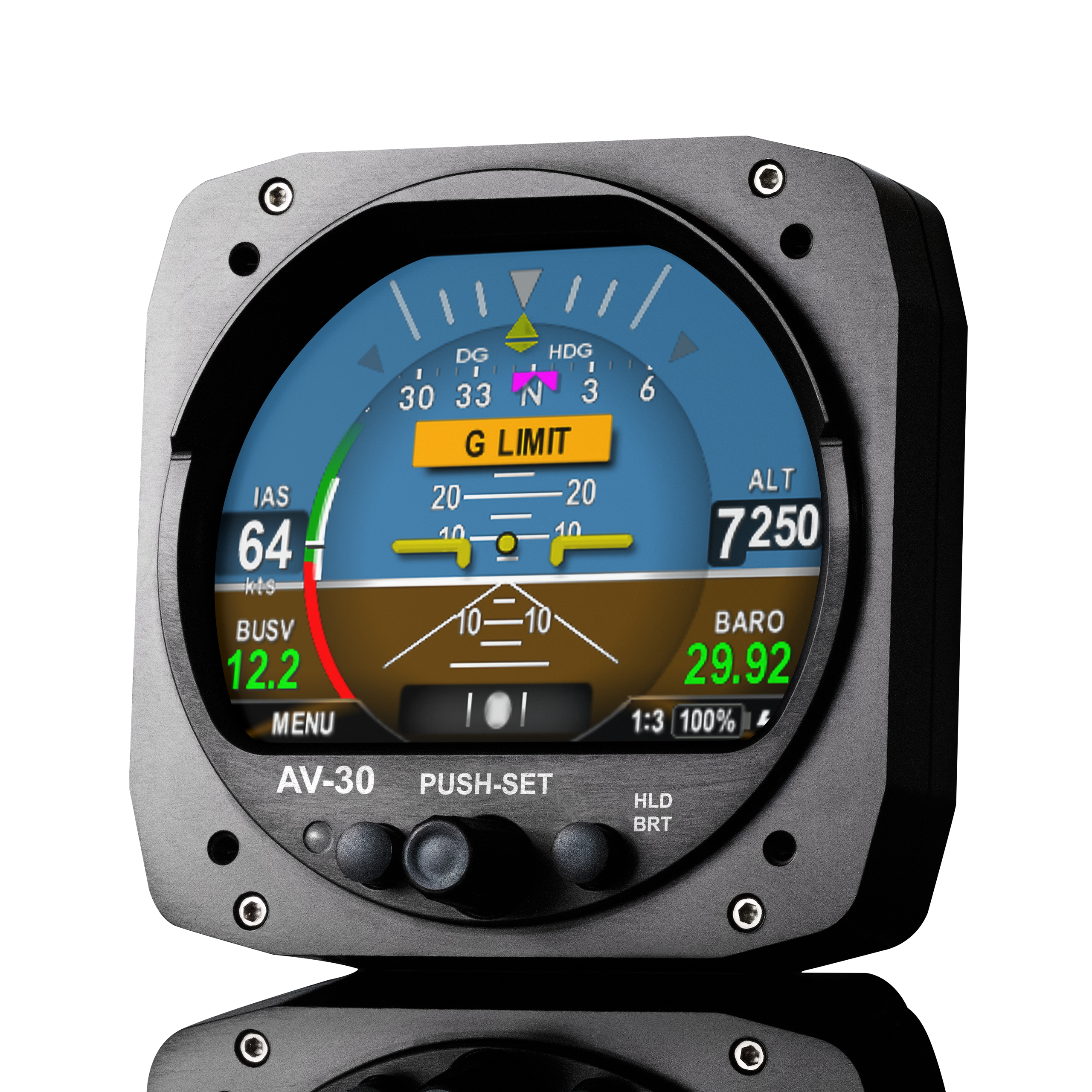

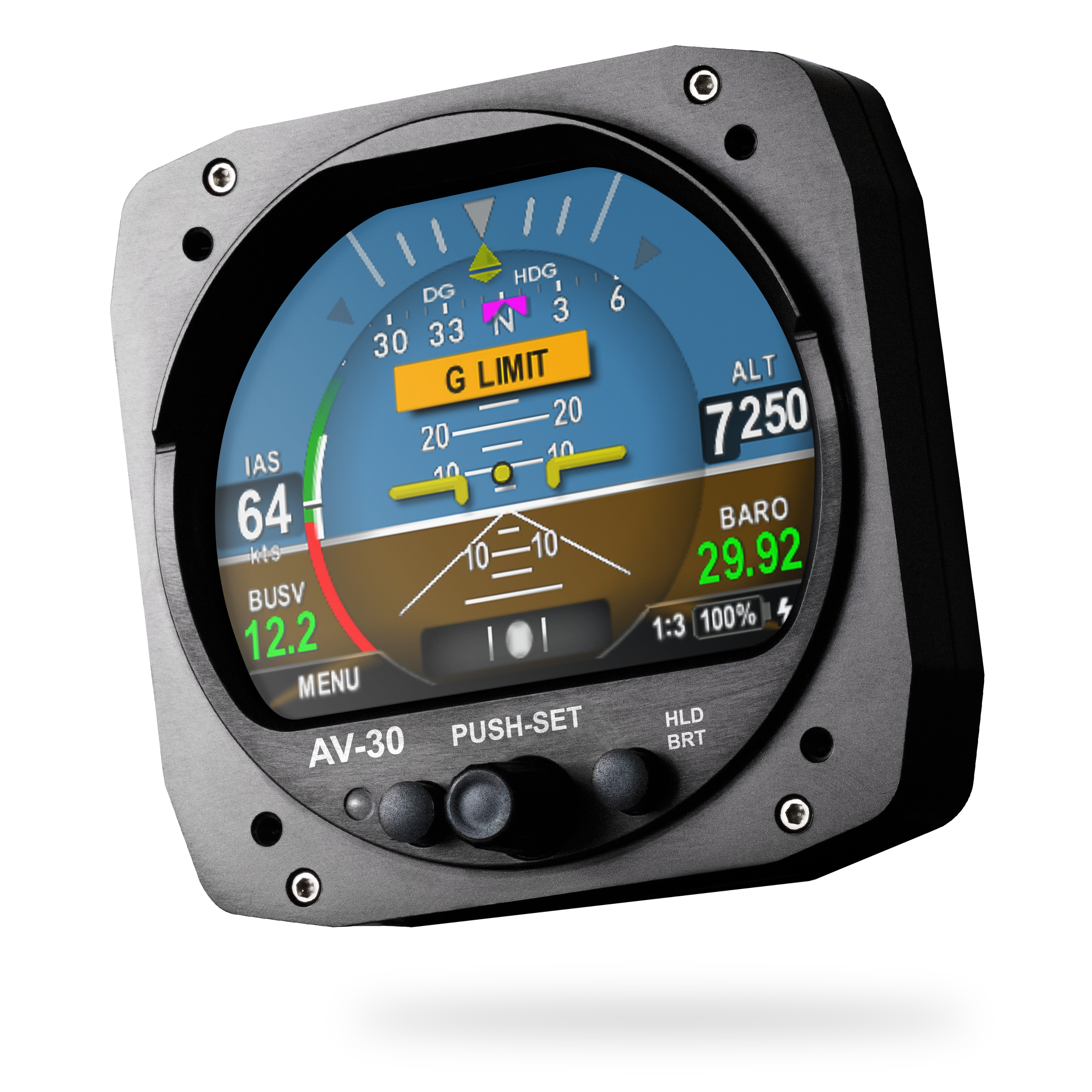

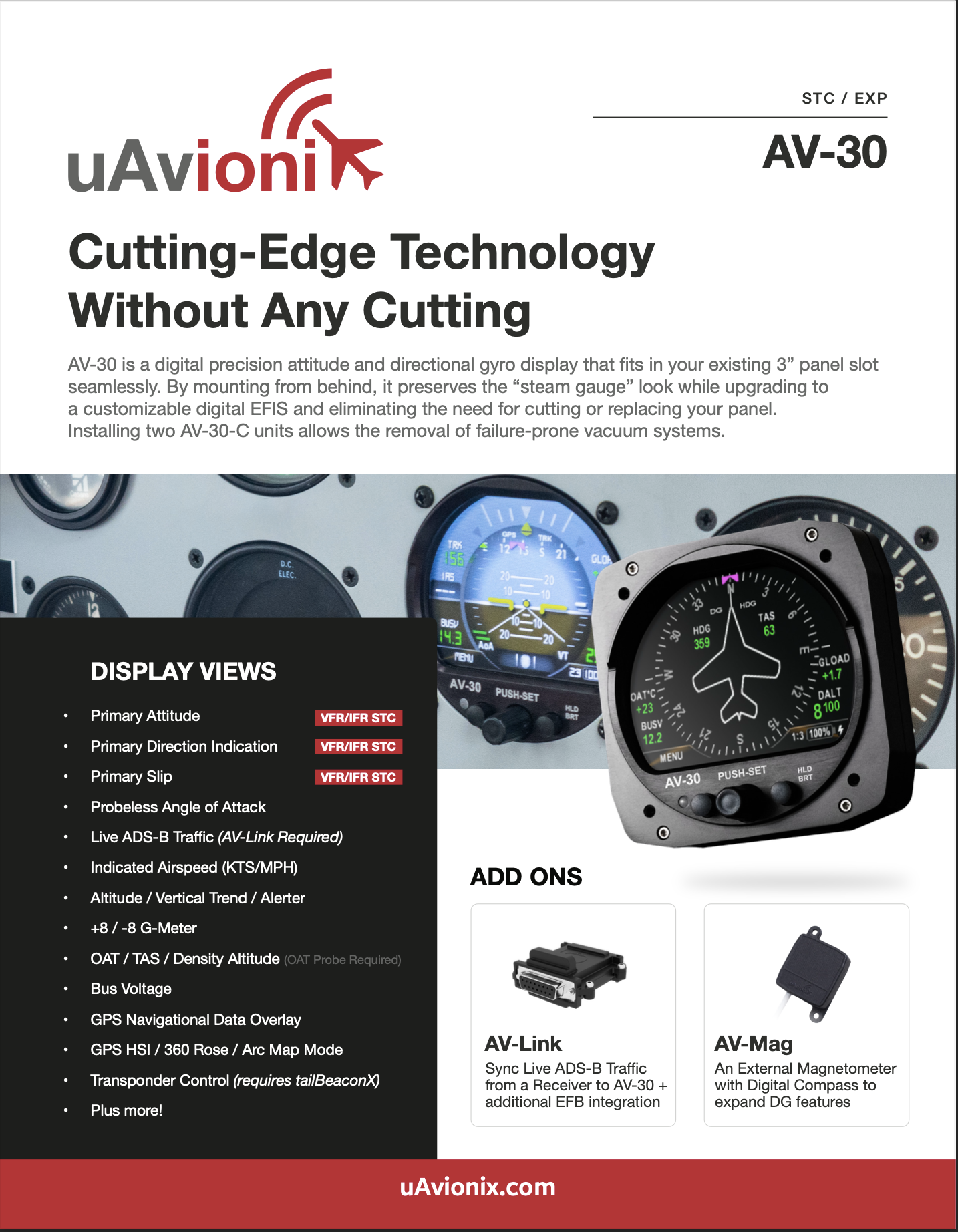

AV-30C

Retrofit Your Cockpit with a Digital Upgrade

Cutting-Edge Technology Without the Cutting

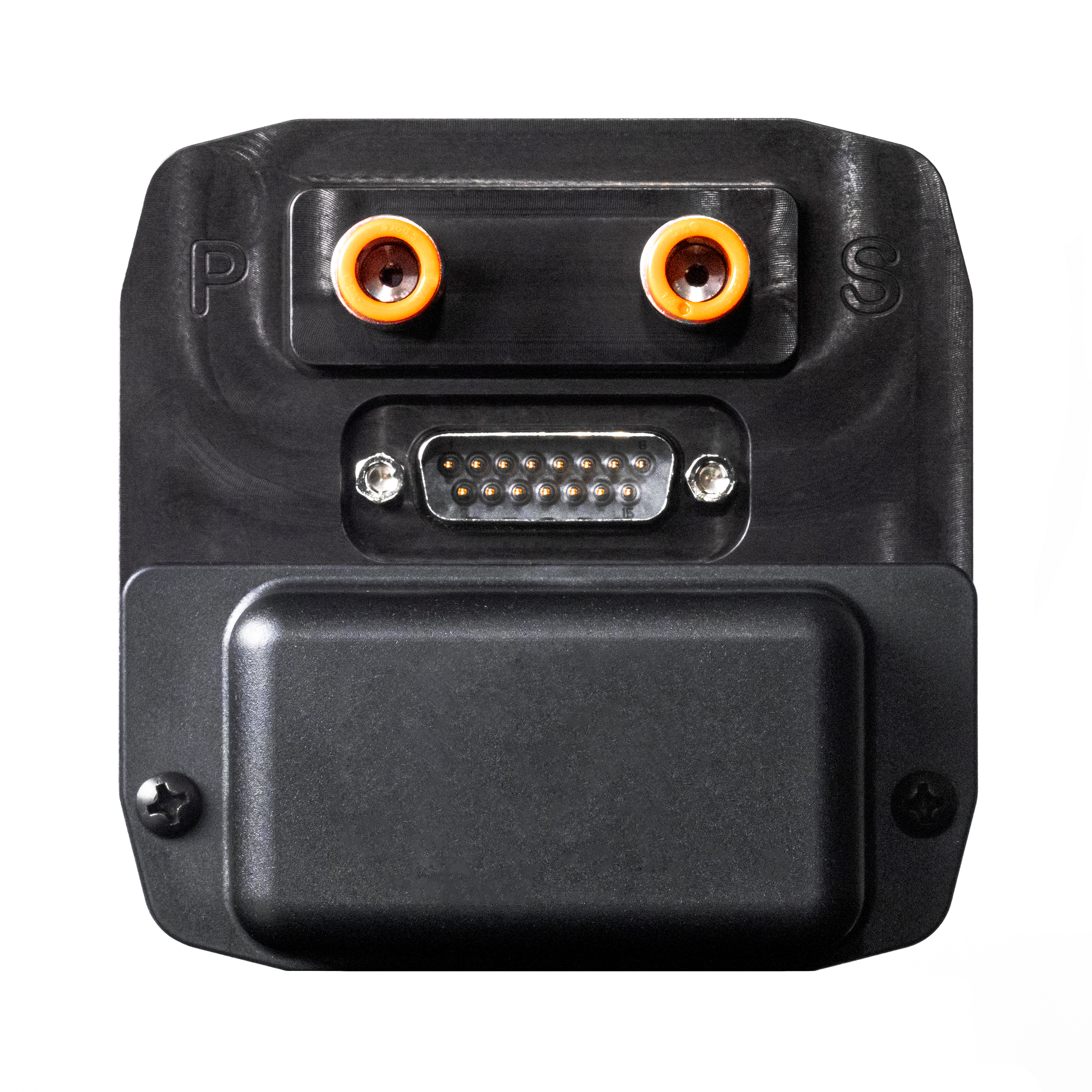

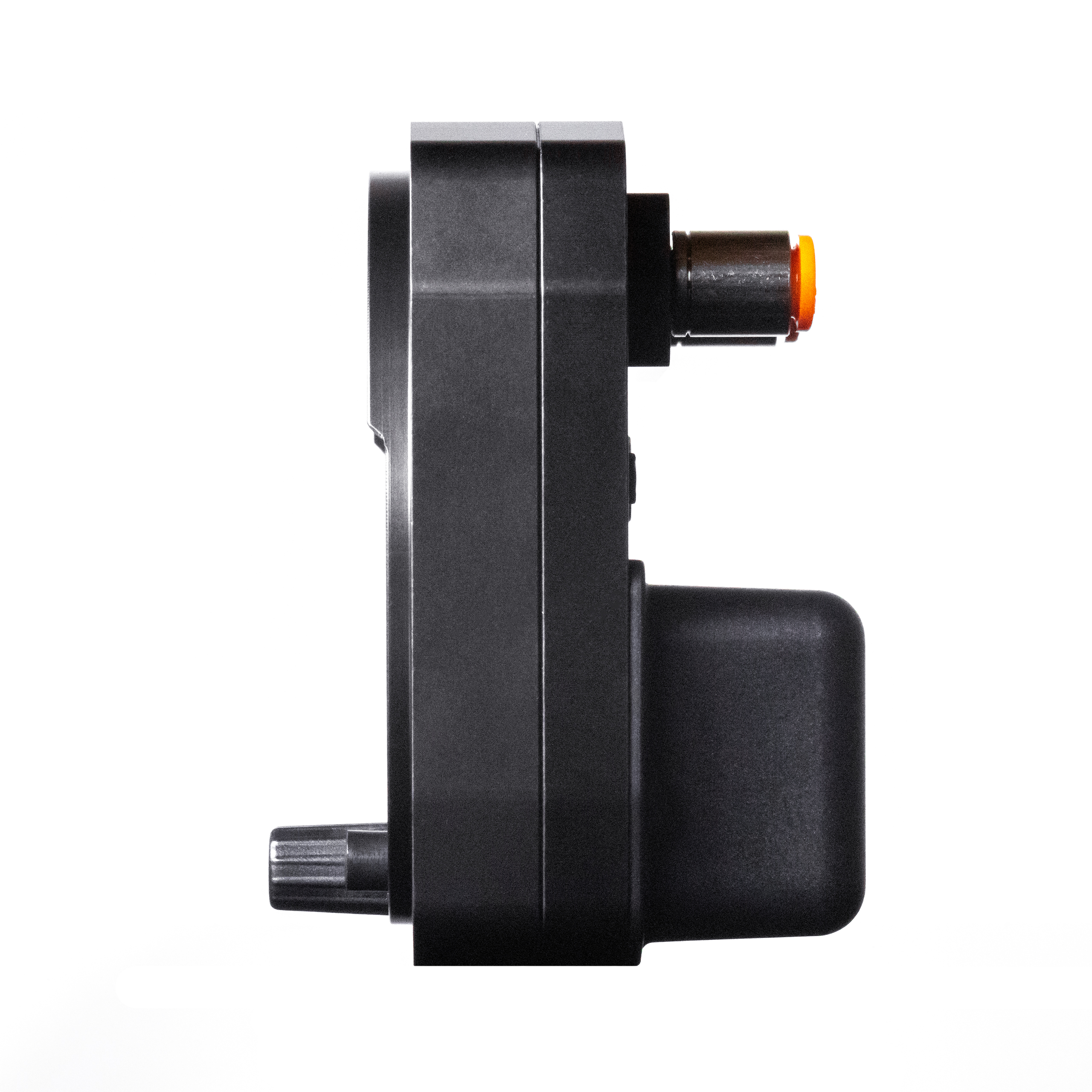

AV-30 fits in your existing 3” panel slot seamlessly. By mounting from behind, it preserves the “round dial” look, and eliminates the need for cutting or replacing your panel.

14-In-1 Functionality

Primary Attitude

Primary Slip

Primary Direction Indication

Probeless Angle Of Attack

Indicated Airspeed (KTS/MPH/KMH)

Altitude / Vertical Trend / Alerter

+8 / -8 G-Meter

POAT / TAS / Density Altitude

Bus Voltage

GPS Navigational Data Overlay

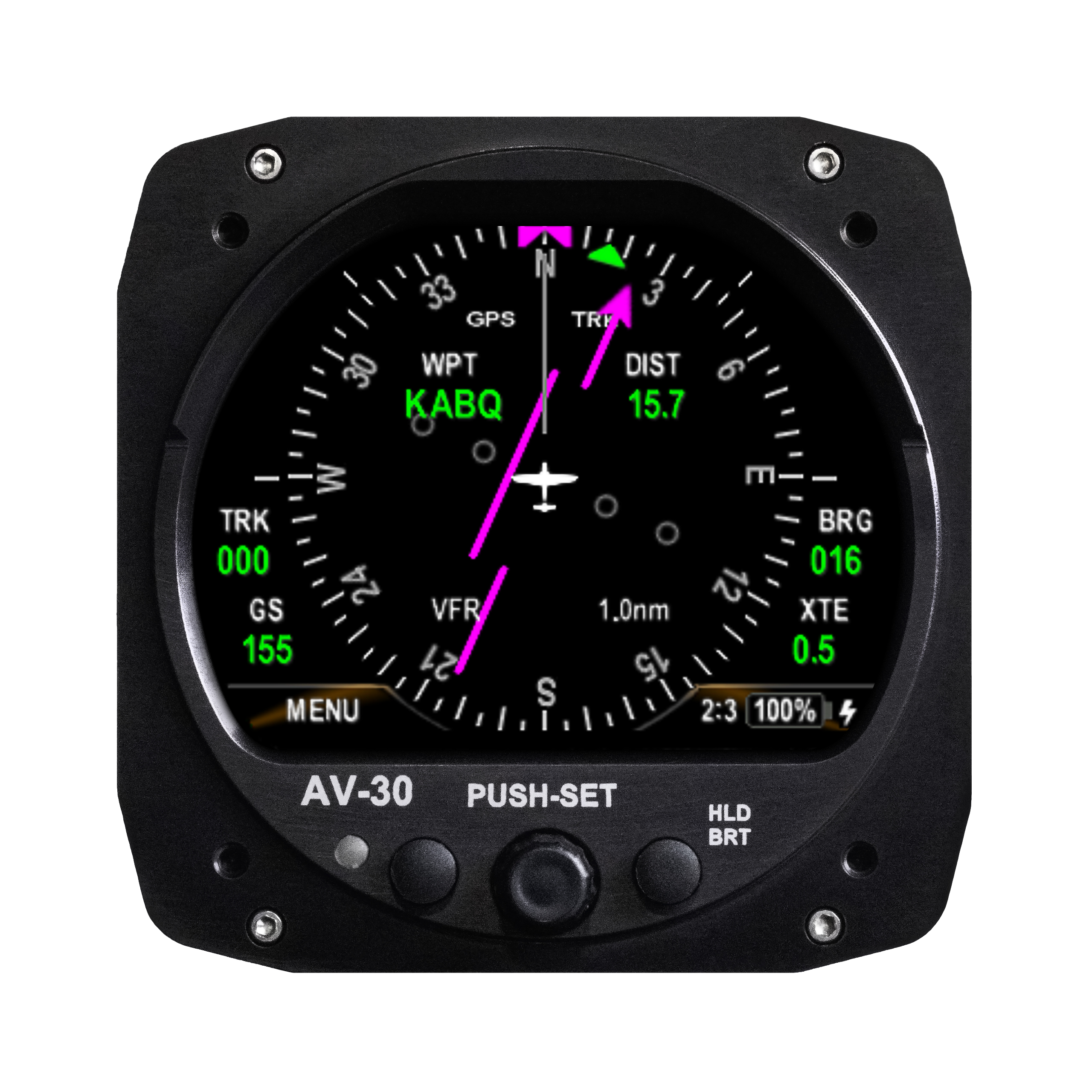

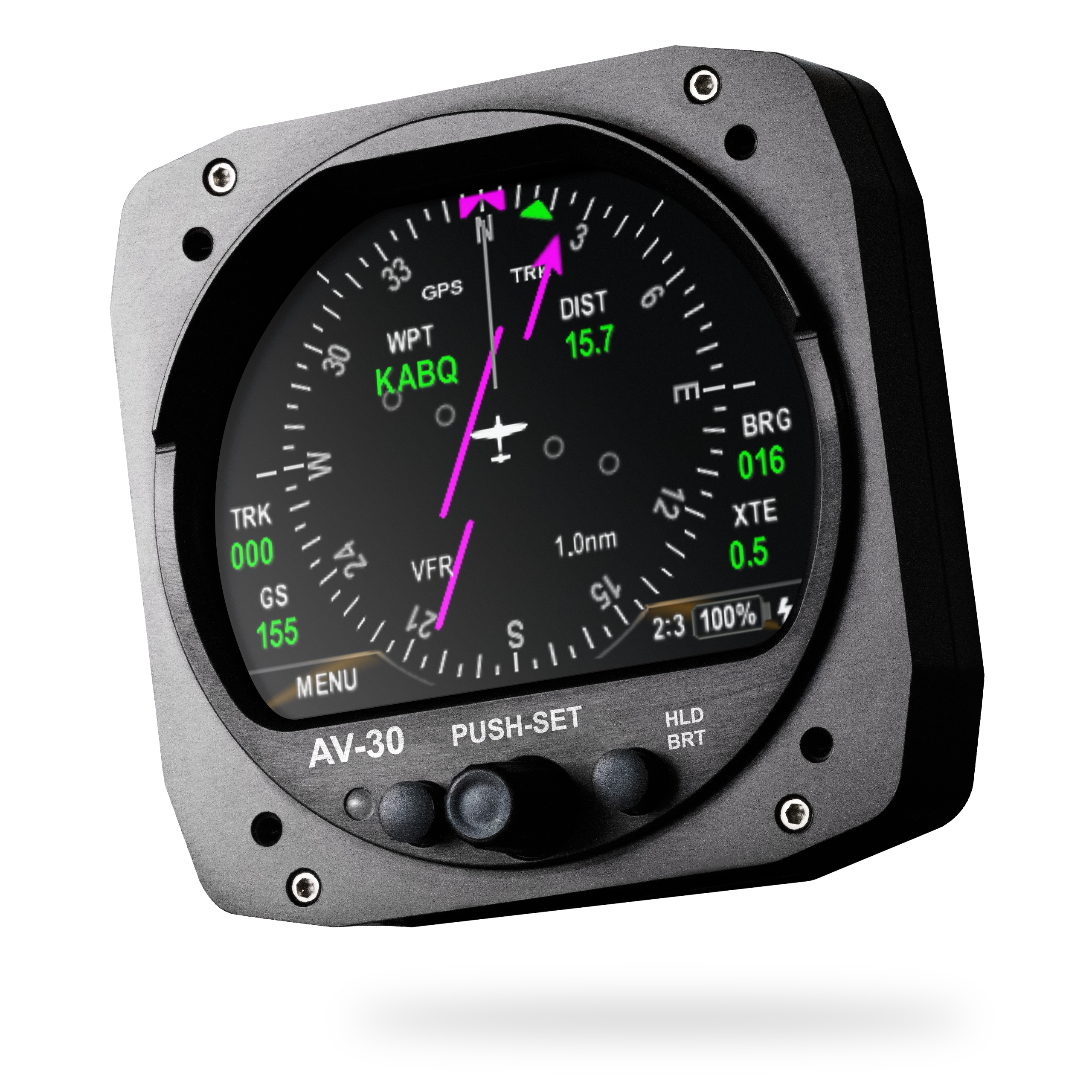

GPS HSI / 360 Rose / Arc Map Mode

Customizable Colors, Fonts, and Layout

Audio Alerts (AoA, G, Roll Limits)

From support for the latest AV-30 accessories, such as the AV-APA and AV-HSI, to improved interfaces for flight plans and squawk settings, the latest AV-30 Software Versions usher in a new era of capability and choice.

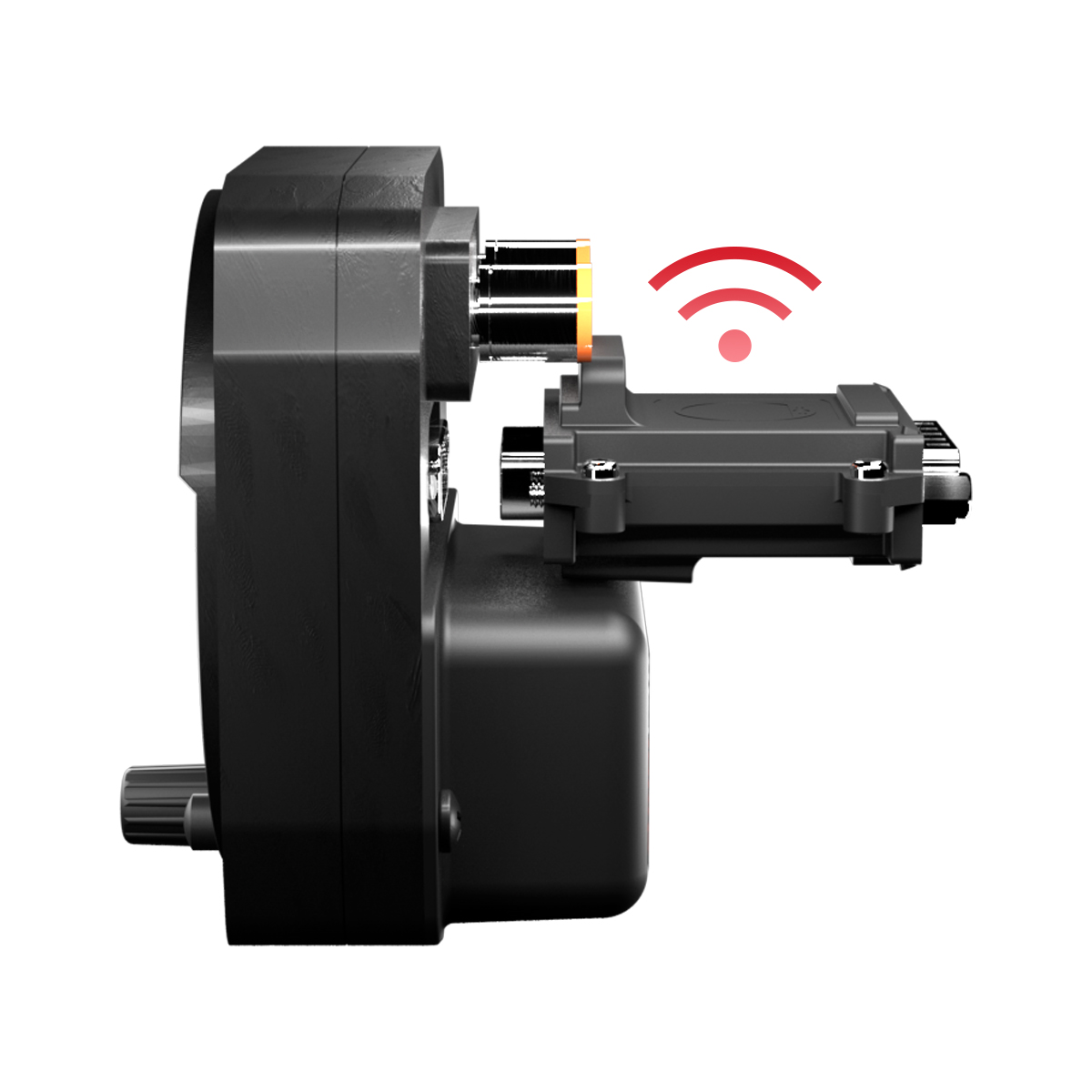

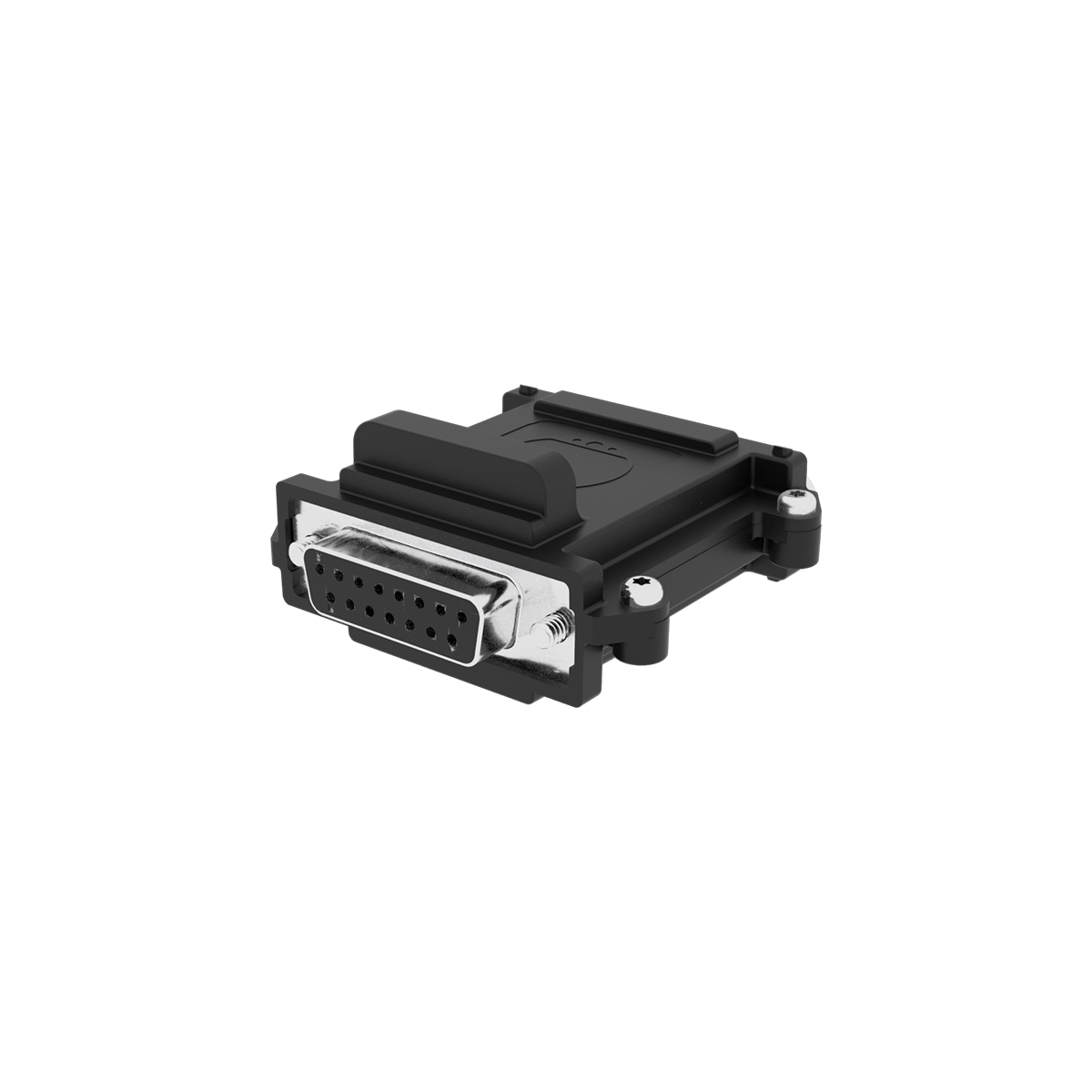

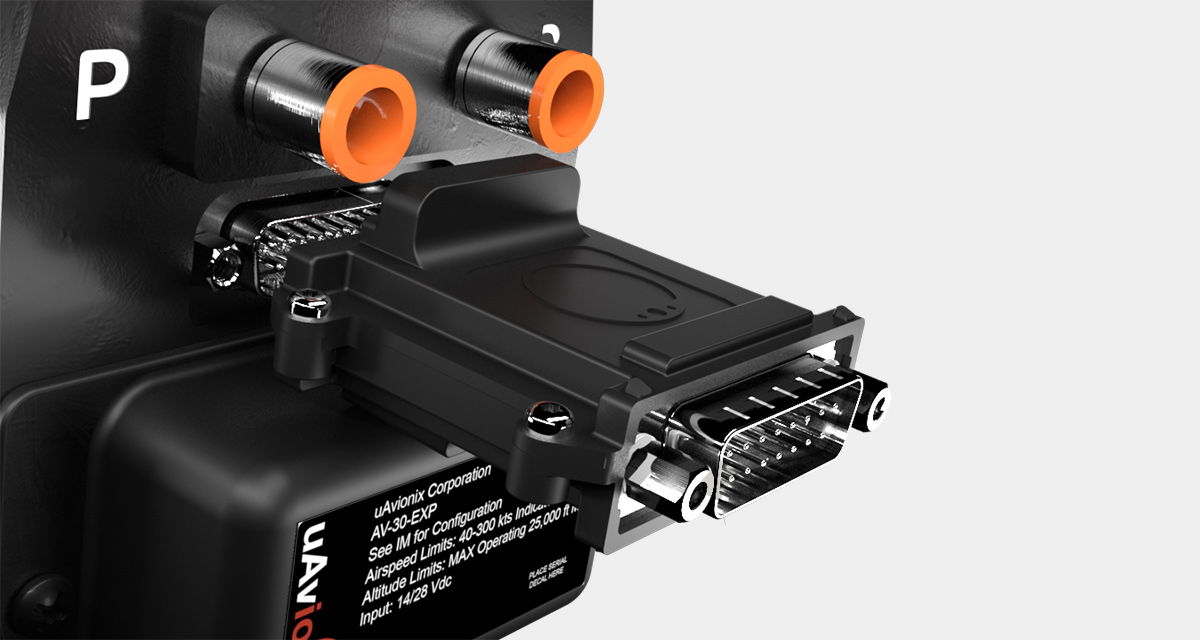

AV-Link PMA

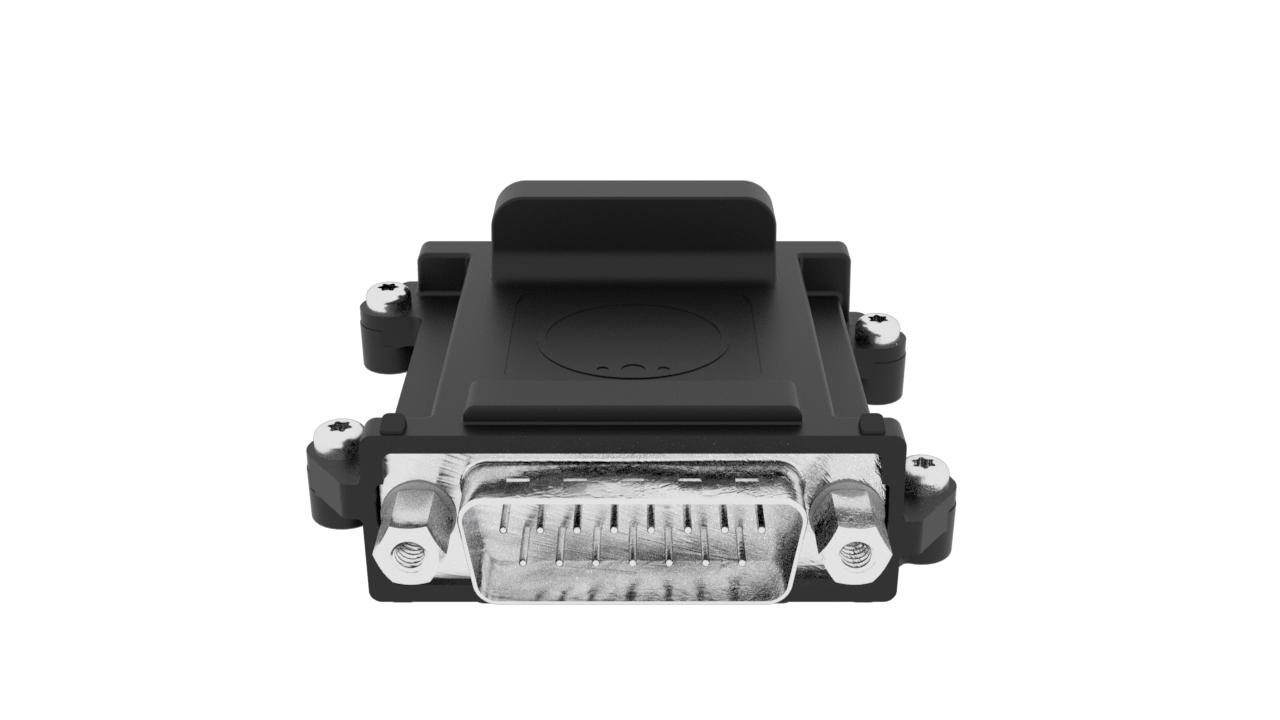

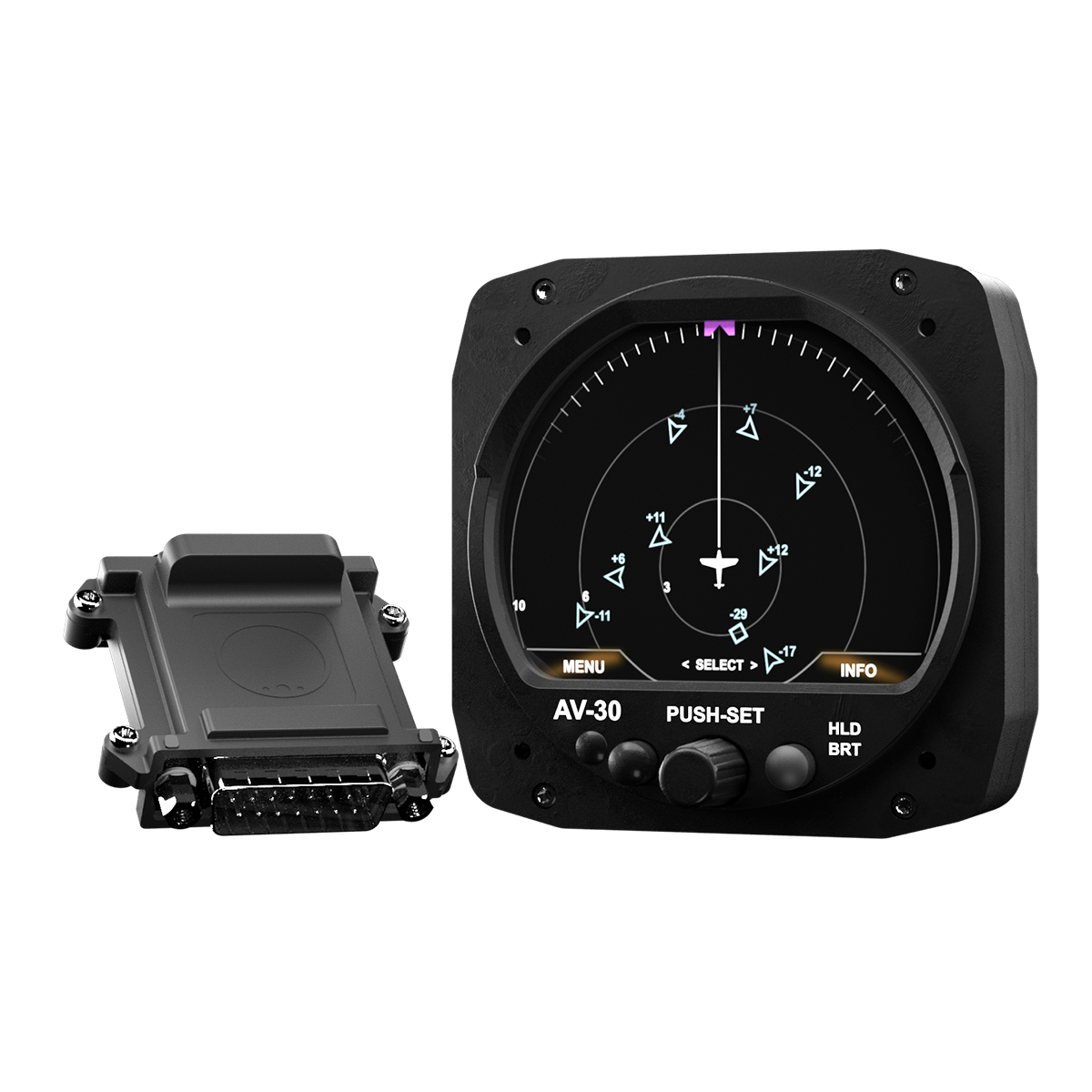

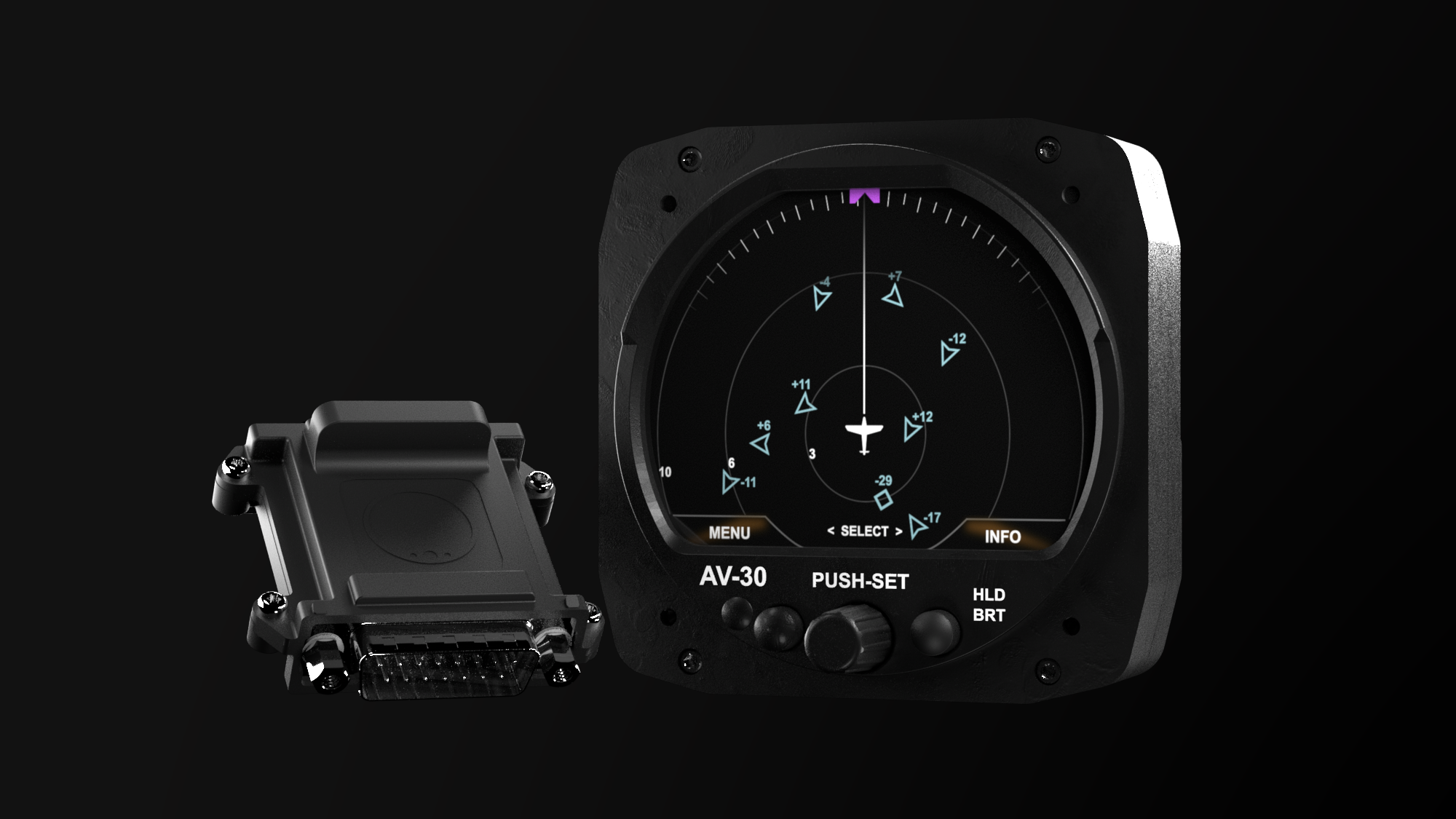

AV-Link is the Wi-Fi module companion to the AV-30 panel display. AV-30 packs a generous feature-set in a surprisingly small form-factor, but with our background, we never settle for anything less than nearly impossible.

AV-Link expands AV-30’s feature-bursting heritage and adds Wi-Fi connectivity to support live traffic from a supported ADS-B receiver, wireless firmware updates, and more with future features already in development.

Features:

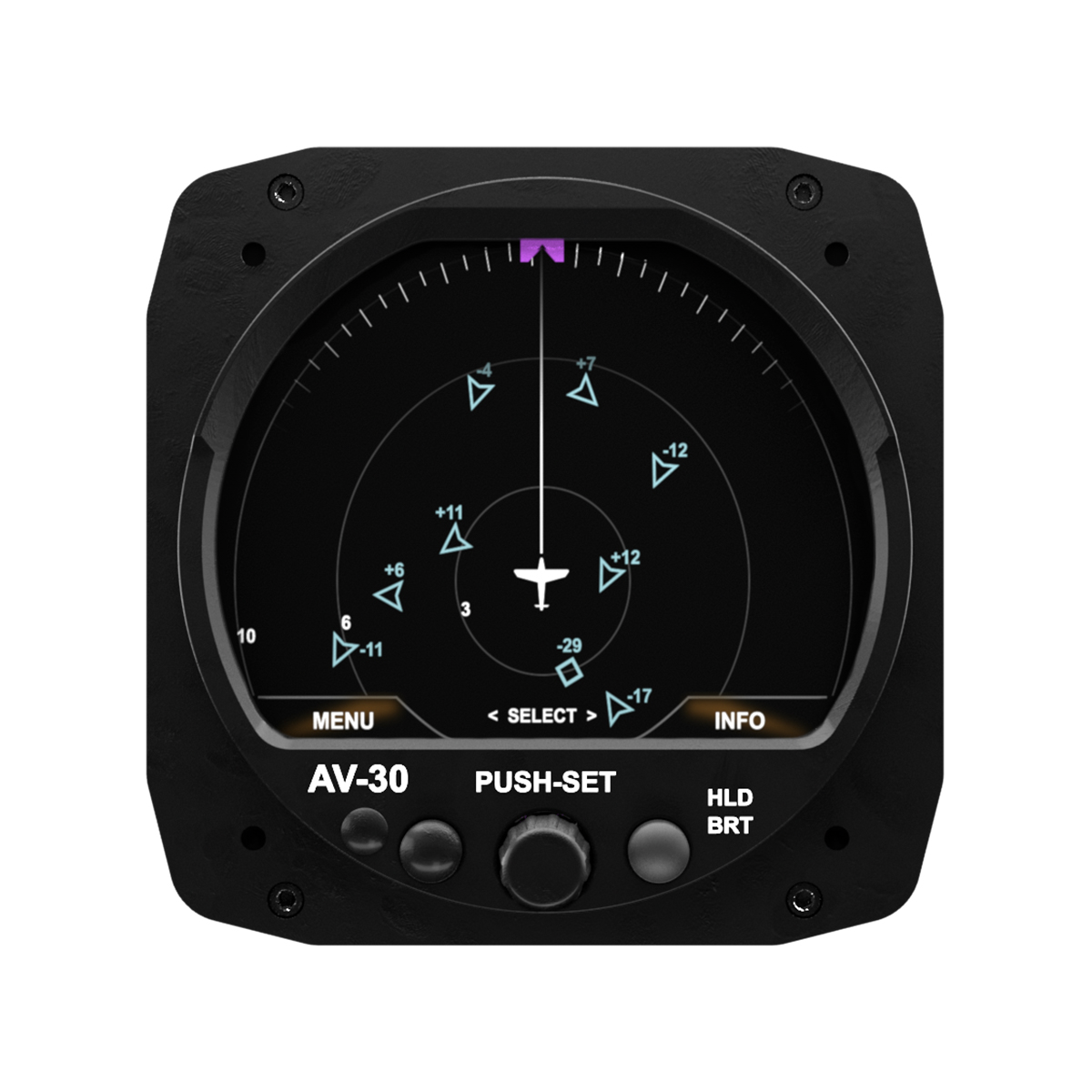

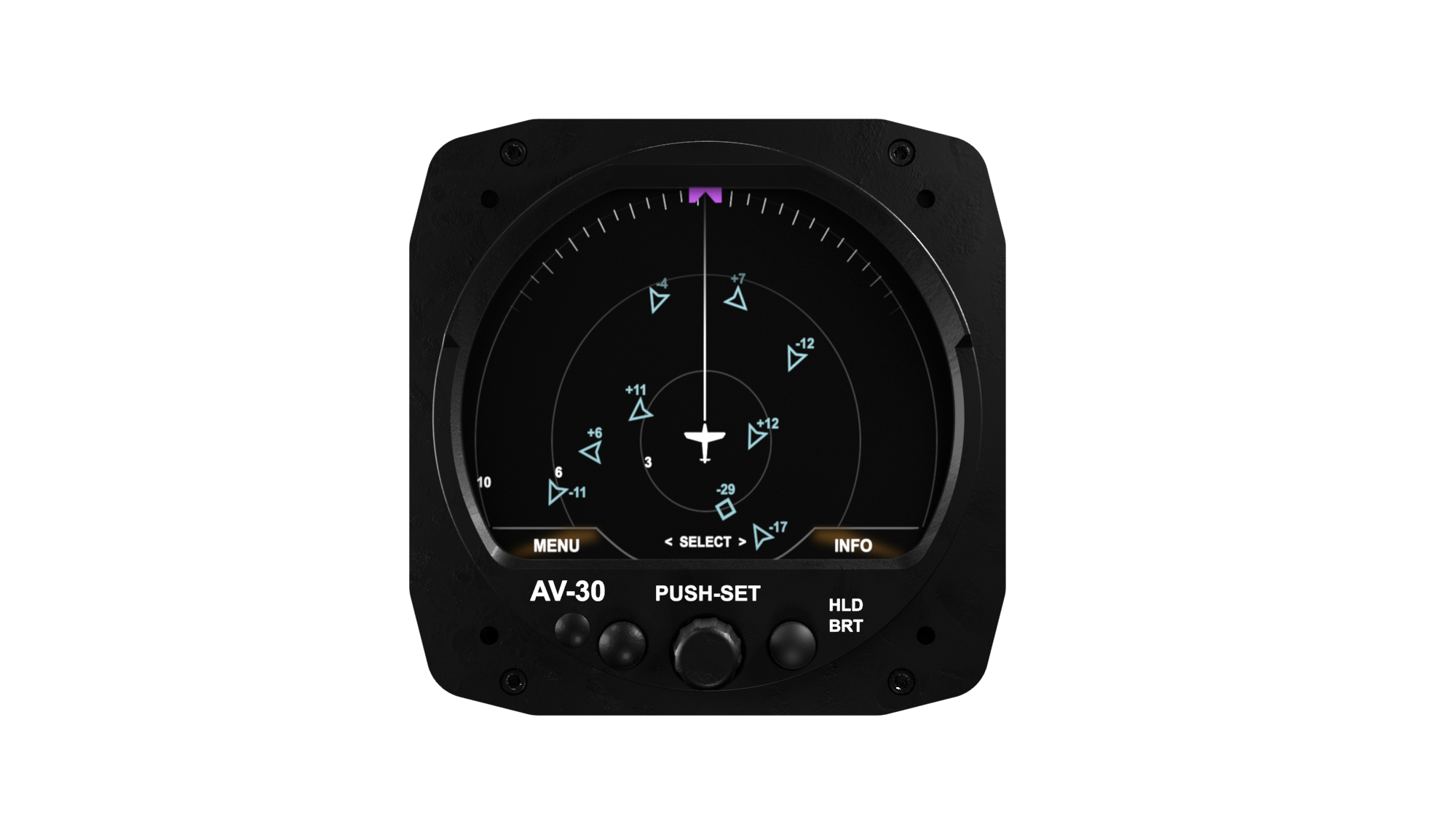

Display Live ADS-B Traffic on AV-30-E with a supported ADS-B Receiver, such as ForeFlight Sentry and Sentry Mini, echoUAT, SkyEcho, skySensor, or any standard GDL90 Wi-Fi protocol portable ADS-B receiver with GPS

Wirelessly update AV-30-E firmware from a computer via Wi-Fi

New exciting features coming soon that further connect your panel and avionics

* AV-Link requires an AV-30-C. Learn more about AV-30 and AV-Link * AV-Link PMA is FAA Approved for Certified and Experimental Aircraft Installations

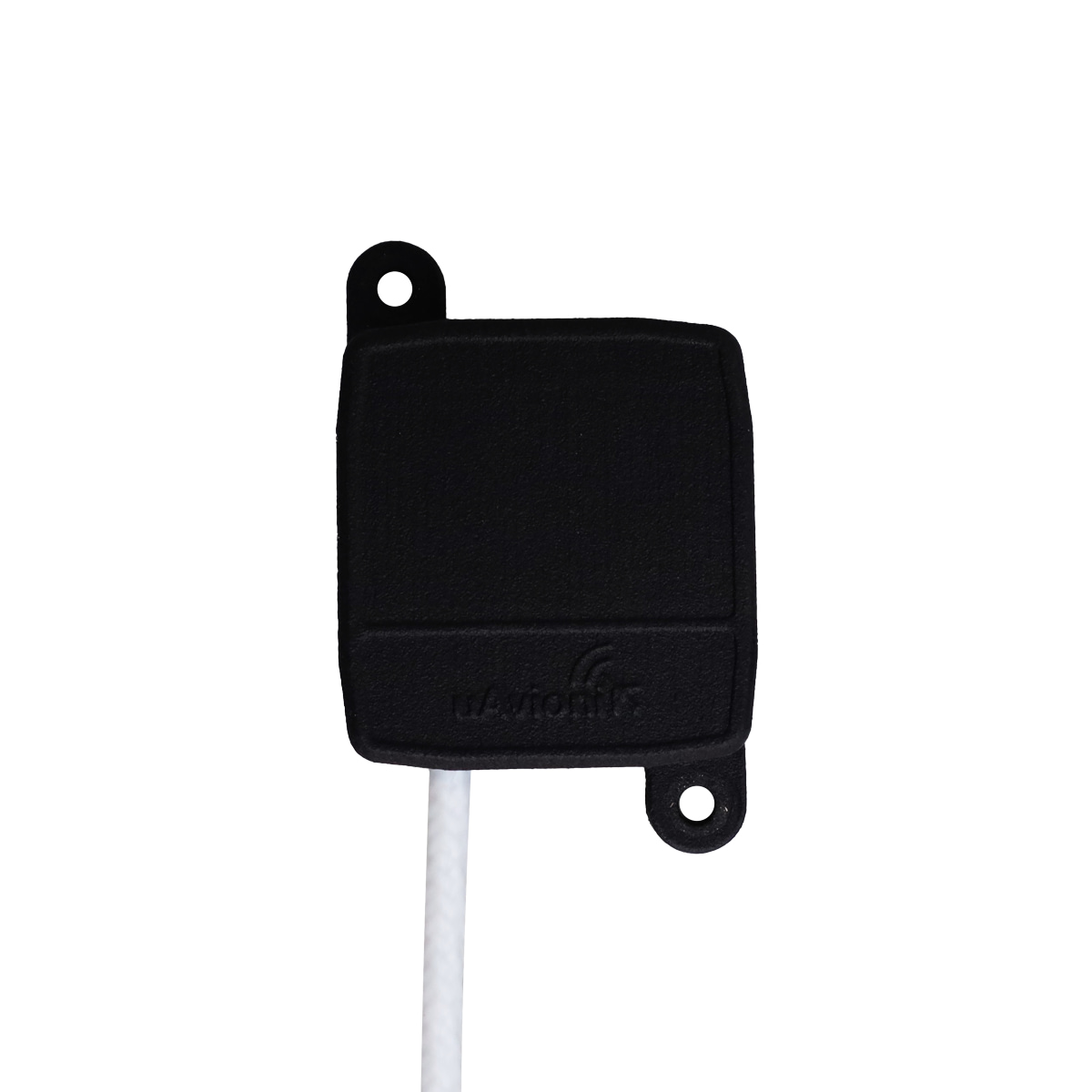

AV-Mag PMA

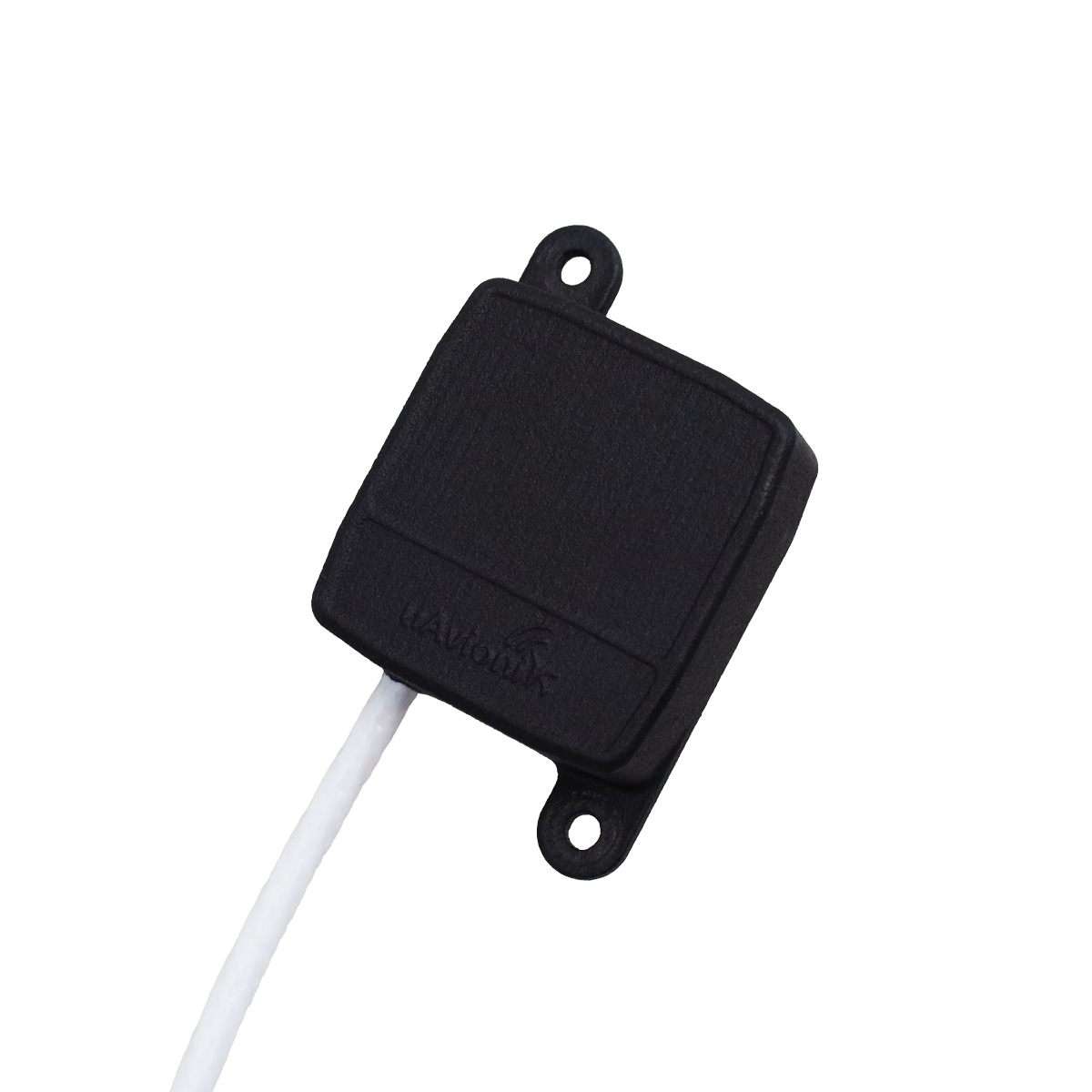

AV-Mag external magnetometer is a 3-axis electronic compass. AV-Mag precisely measures the earth’s magnetic field and aids the AV-30 directional heading measurement, improving long-term accuracy and consistency. One AV-Mag can support multiple AV-30 displays.

Width: 1.49 Inches

Height: 0.67 Inches

Depth: 2.38 Inches

Weight: 1.4 oz (40.0 grams)

AV-MAG (STC EASA & FAA) IS FOR CERTIFIED OR EXPERIMENTAL AIRCRAFT.
